Concentrated load · SHCCM150601630 · 2015
2,950 N for the tested ST660-B / ST-3C150 configuration; the report defines the CISCA / client test scope.
Request Test Report ↗CAD drawings
and sample test reports.
Explore panel specifications, support and installation drawings, and product test summaries. Request the full report for your selected model and project.
PRODUCT BROCHURE / 2026Explore the complete
Explore the complete
Panelway floor system.
Browse application series, Bare, HPL, Vinyl and Ceramic panels, understructure and accessories, together with manufacturing and packing.
01 / PRODUCT & INSTALLATION DRAWINGS
ST System CAD V4.0.
This 24-page drawing set covers panel construction, edge variants, airflow details, pedestals, stringers and installation.
Panelway_ST System_AutoCAD Details_V4.0.pdf
Open CAD PDF ↗Panels p1–6 · Airflow p7–14 · Supports p15–22 · Installation p23–24
02 / SAMPLE TEST REPORTS
Find the report for your product.
Choose the report for your panel or component. Results apply to the model, sample and test conditions identified in each document.
Full test reports are available on request. Share your selected model and project requirements so we can provide the relevant documentation.
Breaking load · SHCCM150601631 · 2015
10,763 / 11,657 / 11,931 N at report test positions.
Request Test Report ↗Uniform load · SHCCM150601800 · 2015
12,500 N/m² for the tested configuration and conditions.
Request Test Report ↗Pedestal axial load · SHCCM150601633 · 2015
20 kN, 5 minutes, three samples unbroken; actual height 130 mm.
Request Test Report ↗Mechanical · CIC-RJ-CC261105-01A · 2026
GB/T 36340-2018 Type P; 3,560 N concentrated; 16,000 N/m² tested UDL.
Request Test Report ↗Fire · FH2026RS0141 · 2026
Substrate A(A1), GB 8624-2012; overlay V-1, GB/T 2408-2021.
Request Test Report ↗SGS fire · TJIN1911018334CM · 2019
ASTM E84-2018 FSI 0 / SDI 0; E136-2016a results for the tested specimens.
Request Test Report ↗The SGS 2019 E84 Class A language refers to interior wall / ceiling finish classification in the report; it is not an EN floor class or a fire-resistance duration. ST800-H CAD declares 17,000 N/m² UDL; the mechanical report tests 16,000 N/m². See the HPL page for the separate values.
03 / INSTALLATION REFERENCE
Plan the installation details.

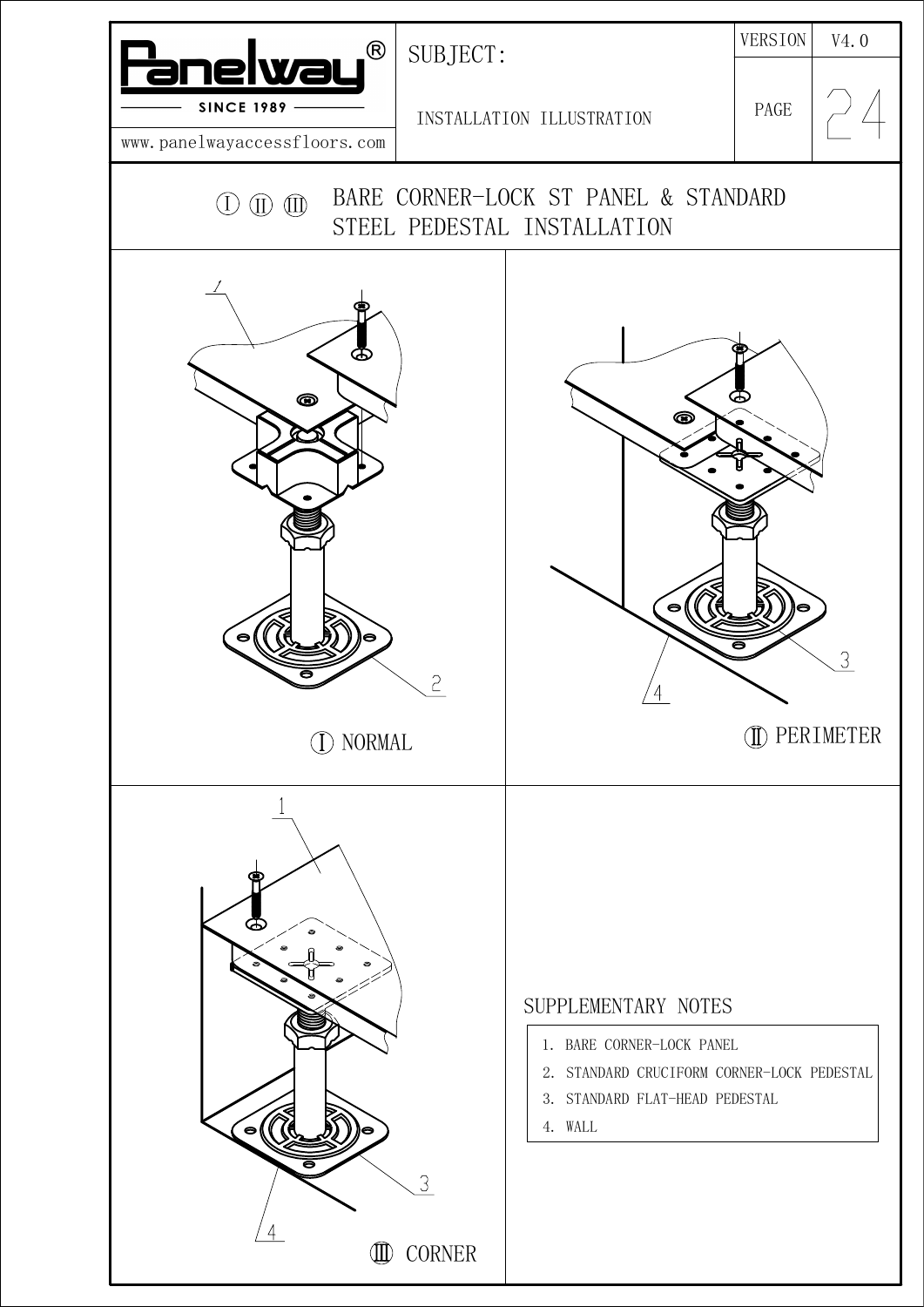

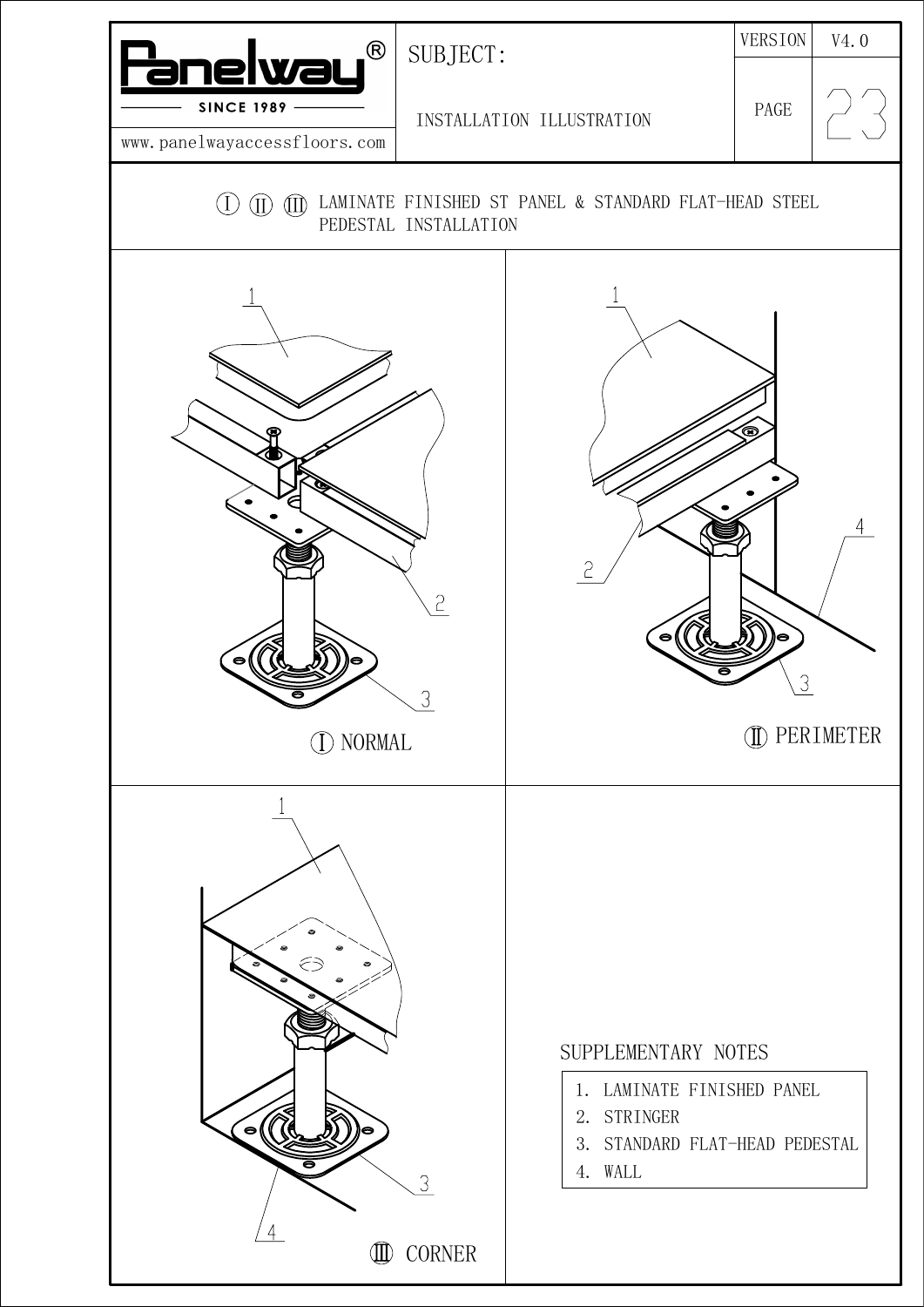

CAD installation illustrations show normal, perimeter and corner connections. Project height, anchorage, openings and installation conditions are selected with the floor configuration.
PRODUCT DATA / PANELWAY
Facing datasheets and accessory guides.
HPL, PVC, air diffuser and pedestal adhesive literature · Updated 15 October 2026
Download facing specifications, colour references and accessory installation guides. Full test reports are available on request for your selected product.
Panelway HPL Facings
HPL colours, thickness options, maintenance and test data for 1.2 mm laminate specimens.
Read / download PDF ↗Panelway PVC Facings
PVC facing specifications; conductive 10⁴–10⁶ Ω and static-dissipative 10⁶–10⁹ Ω.
Read / download PDF ↗Panelway Air Diffuser
Circular diffuser dimensions and airflow reference under the stated conditions.
Read / download PDF ↗Panelway Pedestal Adhesive
Pack information, substrate preparation, application and storage.
Read / download PDF ↗04 / FINISH & ESD REQUIREMENTS
Specify the requirement. Select the finish.
Choose HPL or Vinyl to suit your static-control requirements. Specify the resistance range, measurement method and grounding arrangement for the complete floor.

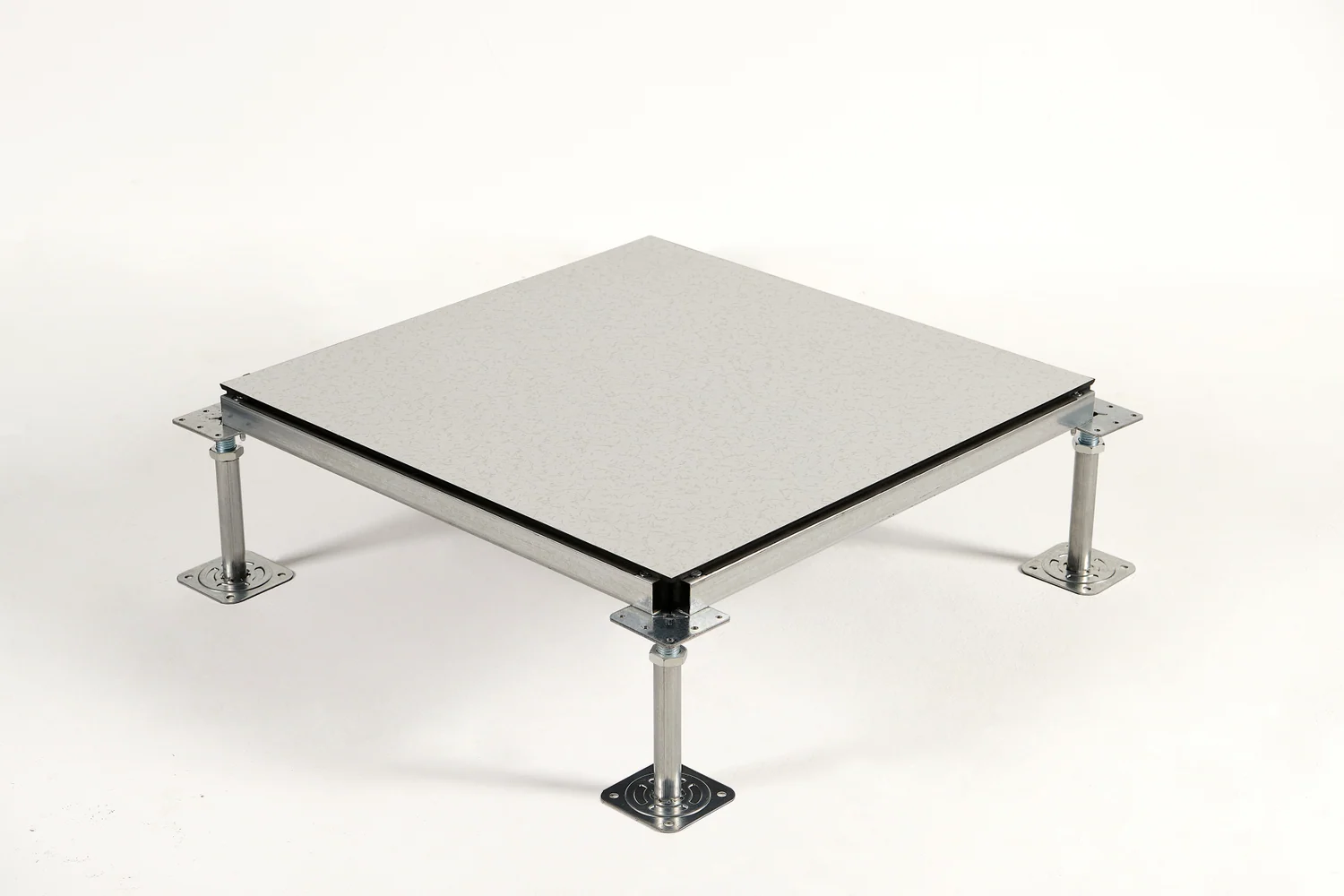

HPL-Finished Steel Raised Floor
Factory-applied HPL. Flat-head pedestals and stringers.
Explore ↗

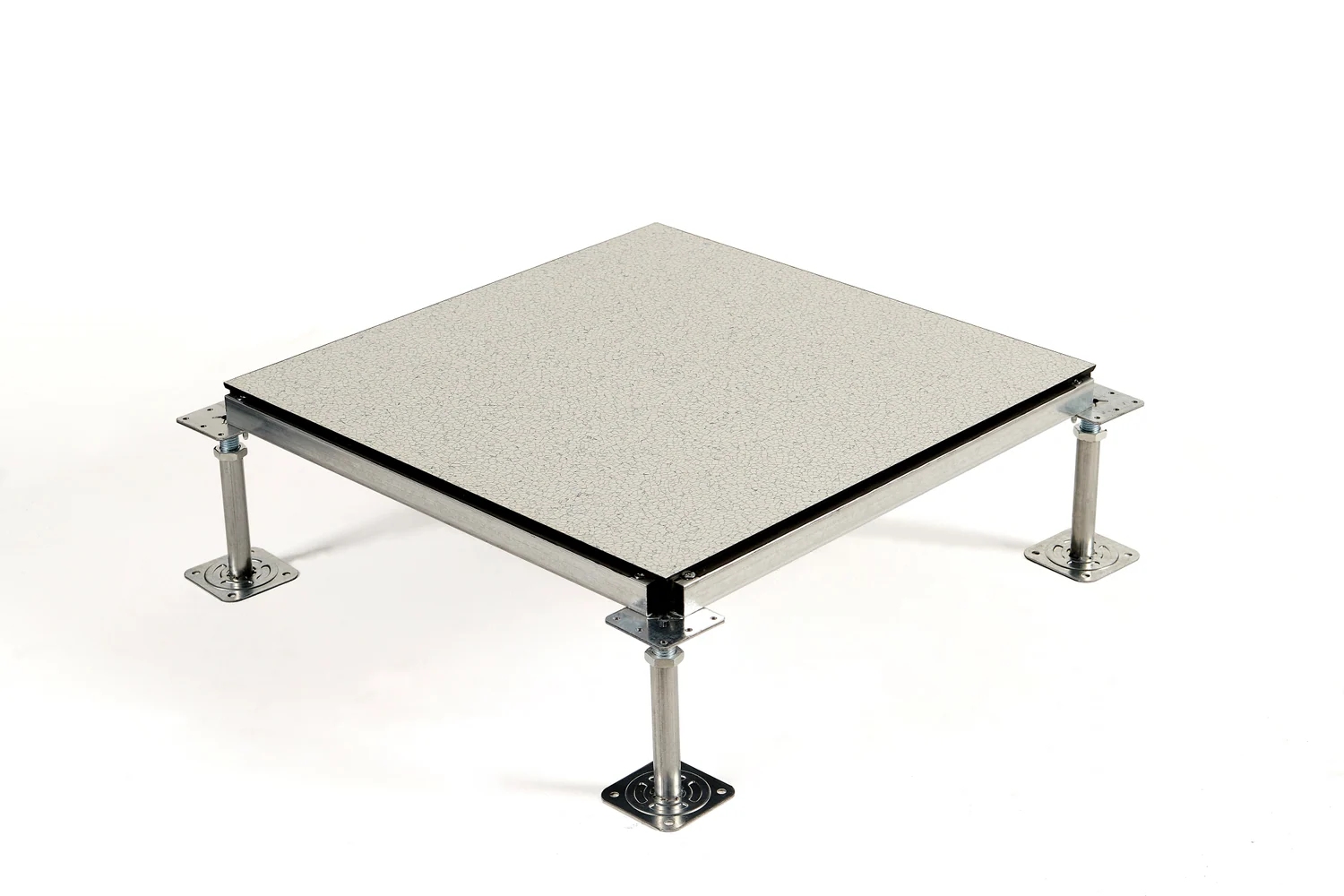

Vinyl-Finished Steel Raised Floor
Project-selected vinyl grade. Flat-head pedestals and stringers.
Explore ↗- Electrical requirement
- Conductive or static-dissipative grade; required resistance range
- Test conditions
- Measurement method, humidity and the project acceptance criteria
- Floor configuration
- Panel, finish, support and grounding arrangement
- Use & maintenance
- Project instructions and suitable maintenance products
HPL and PVC facing specifications
HPL facing options are 1.2 / 1.6 mm, with test data for 1.2 mm laminate specimens. PVC facing options are 1.5 / 2.0 / 2.5 / 3.0 mm; conductive 10⁴–10⁶ Ω or static-dissipative 10⁶–10⁹ Ω under DIN 51953. Select the facing for your cementitious infill steel panel and specify the complete floor configuration, grounding and project acceptance conditions.
Facing test data applies to the stated material specimens. For the complete floor, request the documentation for your selected steel panel, finish and support arrangement.
TECHNICAL QUESTIONS
Useful starting points.
How do I select the load rating?
Choose the panel model, support arrangement and finished floor height for your equipment and use. Compare the product load specifications and the applicable test reports.
Can I request additional technical information?
Share the parameter and applicable test standard with your enquiry. We can discuss the information required for your selected panel and support configuration.
What information starts a project enquiry?
Application, area, finished floor height, loads and finish requirement. Add airflow or ESD requirements when they are relevant.
RELATED MATERIALS / COMMERCIAL INTERIORS
Commercial PVC flooring.
Explore stone, textile and wood-look tile and plank designs, with format, thickness, wear-layer options, installation and care guidance.
This collection covers decorative, multi-layer commercial flooring. For PVC facings applied to raised floor panels, use the PVC facing specifications.
START WITH YOUR PROJECTA clear brief.
Discuss Your Project ↗A clear brief.
A considered floor.
Application, area, finished floor height, loads and finish requirements are enough to start. Add airflow or ESD details where relevant.
