Air distribution outlet
Air Diffuser
Cut-out dimensions and the required air-delivery arrangement.
Discuss This Accessory ↗Raised floor accessories.
Select openings, handling tools and installation materials for the panel and project configuration.
Cable opening treatment
Air Sealing Grommet
Opening size, cable bundle and sealing requirements.
Discuss This Accessory ↗
Panel handling

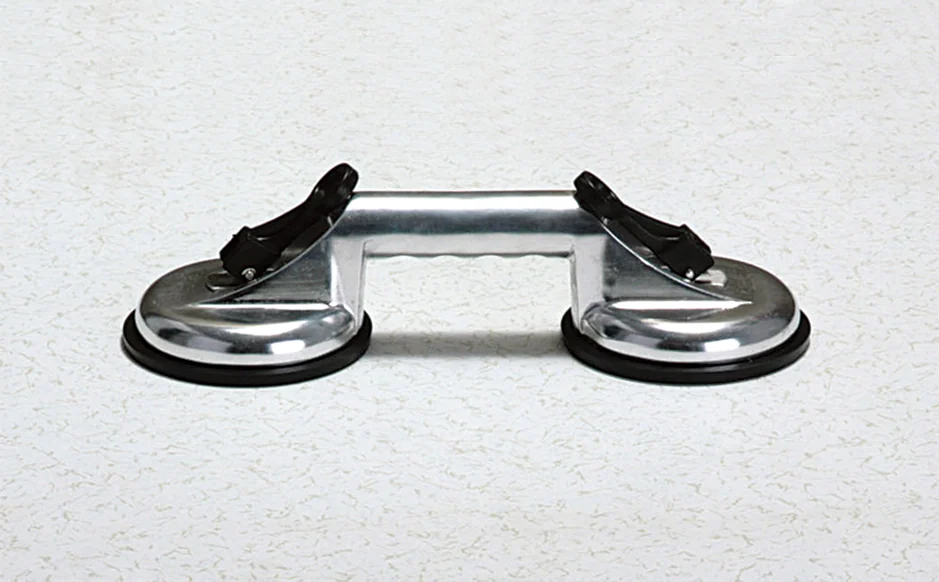

Double-Cup Panel Lifter
Panel surface, handling method and required lifting capacity.
Discuss This Accessory ↗
Panel handling

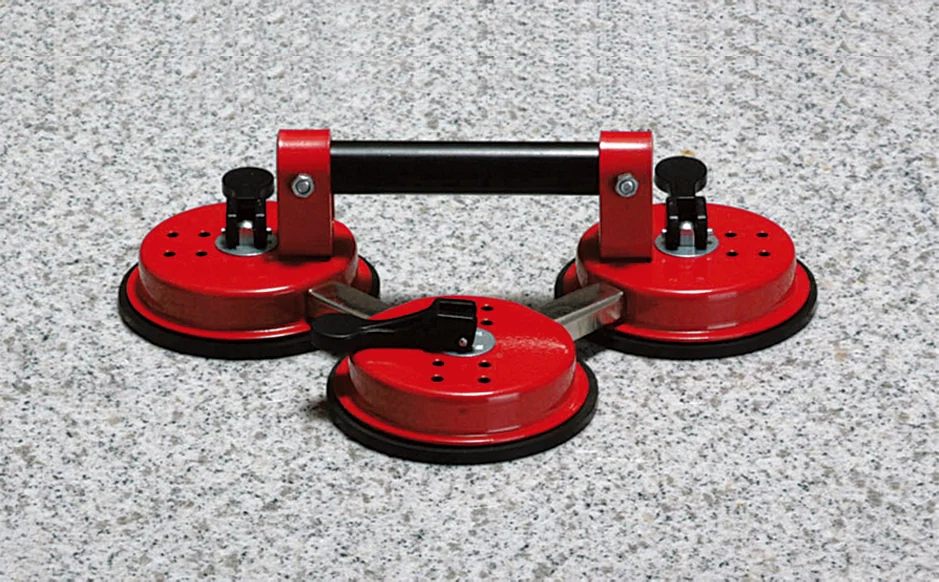

Triple-Cup Panel Lifter
Panel surface, handling method and required lifting capacity.
Discuss This Accessory ↗
Floor-level service outlet

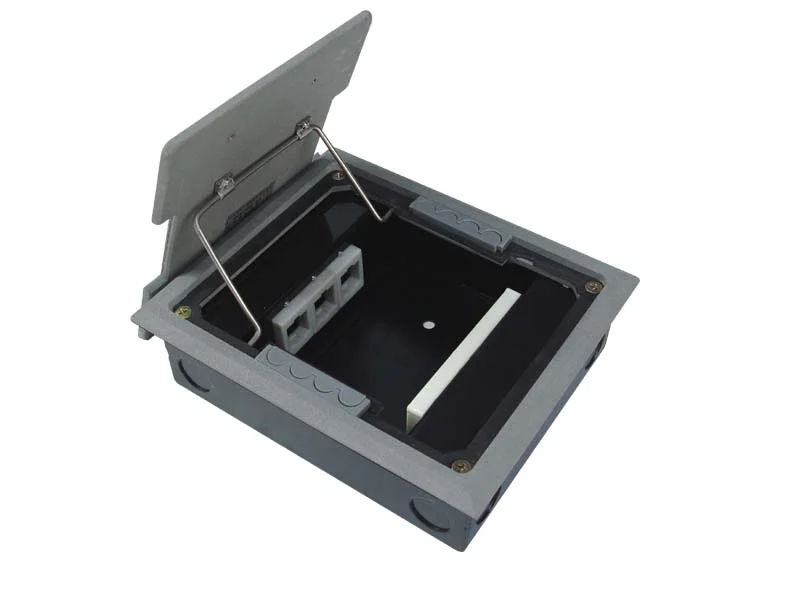

Floor Socket Outlet
Cut-out, electrical configuration and local requirements.
Discuss This Accessory ↗
Installation material
Pedestal Adhesive
Substrate, application, curing conditions and product instructions.
Discuss This Accessory ↗Select the accessory size, handling capacity, electrical configuration and installation requirements to suit your floor and project.
PRODUCT DATA / PANELWAY
Component details for the installation.

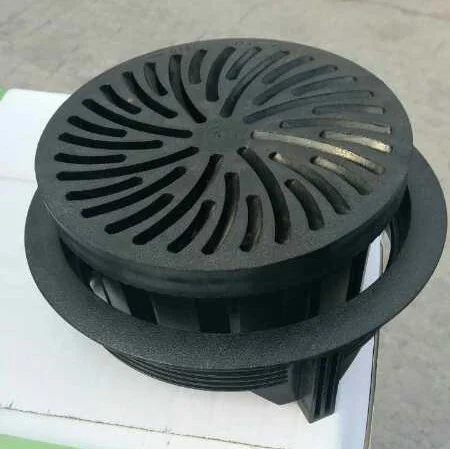

Air diffuser
A circular swirl diffuser installed in a raised floor panel; a separate component from a perforated airflow panel.
- Nominal size / flange
- 203 mm / 237 mm
- Panel cut-out / body
- 210 mm / 197 mm
- Overall depth
- 108 mm
The brochure gives a 30–120 cfm reference table with the dust basket and damper installed and the damper fully open. Use the stated room and test conditions when selecting airflow, and check the panel opening and assembly fit.

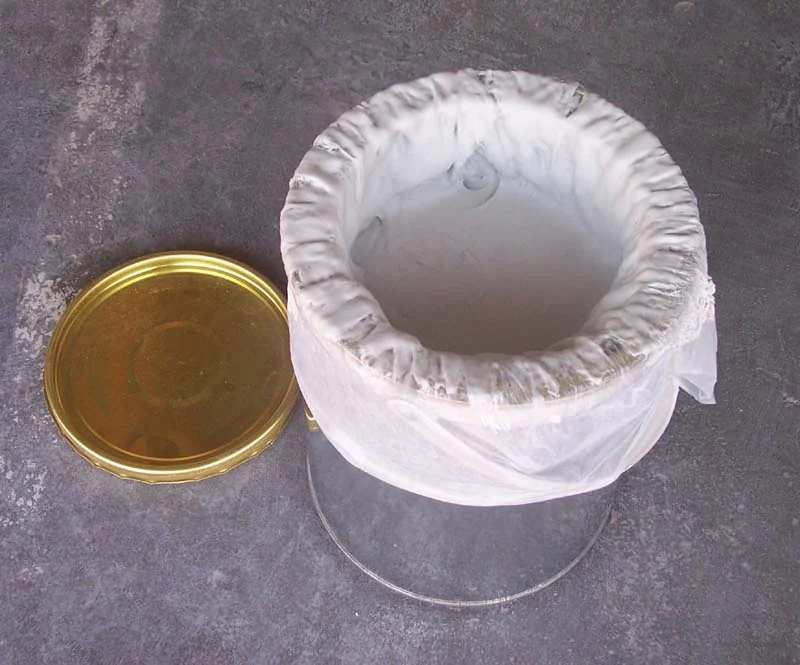

Download dimensions and airflow reference ↗Pedestal adhesive
For bonding pedestal base plates to indoor concrete subfloors. Prepare clean, dry surfaces, apply to the full base plate, position and press, then protect the bond from water before drying.
- Nominal pack volume
- 1 L
- Shelf life
- 12 months
- Notched trowel reference
- Approx. 10 mm spacing; 1–1.5 mm depth
Follow the application guide and Safety Data Sheets. Confirm curing conditions and bond-strength requirements for your substrate and installation.
Download adhesive application guide ↗SELECTION
Fit the opening. Match the panel.
START WITH YOUR PROJECTA clear brief.
Discuss Your Project ↗A clear brief.
A considered floor.
Application, area, finished floor height, loads and finish requirements are enough to start. Add airflow or ESD details where relevant.
